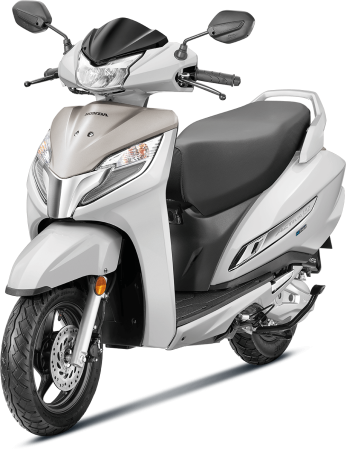

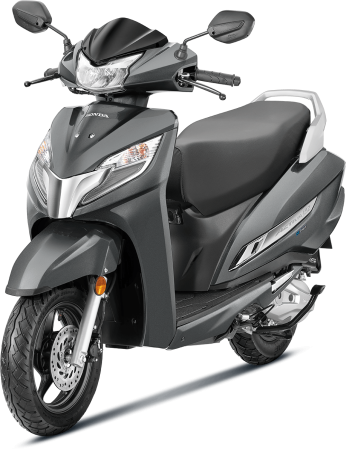

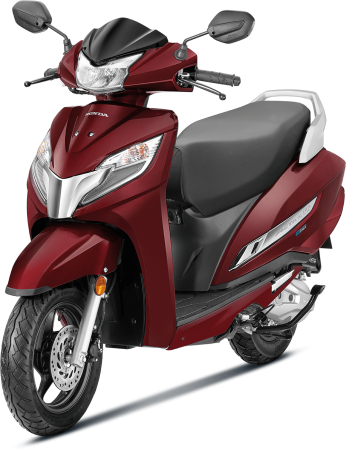

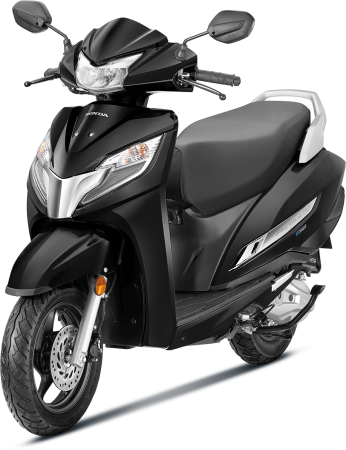

Colors
Specifications
Body Dimensions
- Length1850 mm
- Width707 mm
- Height1170 mm
- Wheel Base1260 mm
- Ground Clearance162 mm
- Seat Length712 mm
- Kerb Weight1. Drum: 110 kg
2. Drum Alloy, Disc, Smart: 109 kg - Fuel Tank Capacity5.3 L
Engine
- Type4 Stroke, SI Engine
- Displacement124 cc
- Max Net Power
- Max Net Torque
- Bore 50.000 mm
- Stroke63.113 mm
- Fuel System PGM-Fi
- Compression Ratio10.0:1
- Air Filter TypeViscous Paper Filter
- Starting Method1. Drum, Drum Alloy, Disc: Kick/self
2. Smart: Self
Transmission
- Clutch TypeAutomatic
Tyres & Brakes
- Tyre Size (Front)90/90-12 54J
- Tyre Size (Rear)90/100-10 53J
- Tyre Type (Front & Rear)Tubeless
- Brake Type & Size (Front)Disc 190mm
- Brake Type & Size (Rear)Drum 130mm
Frame & Suspension
- Frame TypeUnderbone
- FrontTelescopic
- Rear3-Step Adjustable Spring Loaded Hydraulic
Electricals
-
Battery
1. Drum, Drum Alloy: 12V 4Ah (MF)
2. Disc, Smart: 12V 5Ah (MF) - HeadlampLED
